Key Features

USB direct connection eliminates the need to charge a battery.

Small, lightweight design for ease of use and mobility.

Bright lighting ensuring a crisp image

Built-in heating system reduces annoying delays caused by condensation.

Plug and play installation.

Video System

Sensor 0.3 inch CMOS Digital Image Sensor

Lens System 10 micro lenses with fixed focus with large depth of field

Sensor resolution 720 (H) x 720 (V) pixels

Frame rate 24 frames/sec

Output signals USB 2.0

Preheater

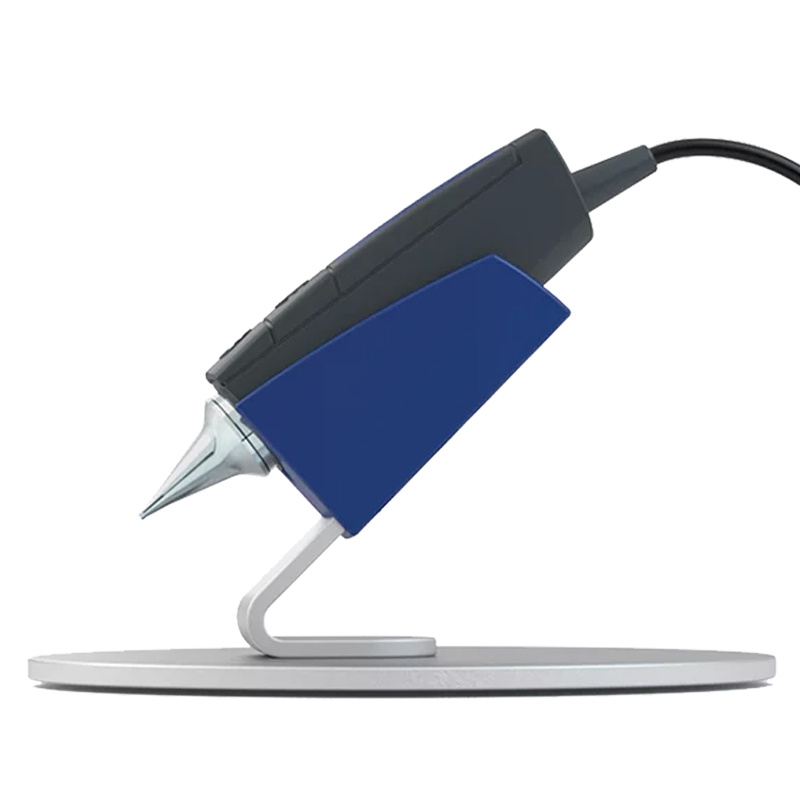

Active when the AURICAL OTOcam 300 is plugged into the PC and placed in its cradle. Activated by magnet in cradle.

Preheater power Heats camera distal tip to approx +5°C (9°F) above ambient temperature after 5 minutes of activation.

Optical Data

Minimum working distance 10 mm (0.4 inches)

Buttons

Freeze frame Right/left ear

Electrical Data

Supply voltage through USB port

Input power USB 2.0, Max. 500 mA.

Light source 2 LEDs, fiberoptic light guide

USB plug USB, type A (LED power supply/ Camera/Pre-heating)

Switch activated by magnet contact used to switch between pre-heating and light
